Two-Dimensional Signal/Power Transmission (2DT) Technology for In-Room Networking and Circuit Integration in Fabrics
Shinoda Lab, The Univ. of Tokyo, JAPAN
Safe and reliable wireless transmission of power and signal
Details of CEATEC 2012 demo (Power supply and high-speed communication)
2011 IEEE Trans. MTT paper on the efficiency and safety of 2DT powering (PDF)
INSS 2007 paper (PDF)
SICE paper in Japanese (PDF)
2008 YouTube
Wireless 2DT technology using electromagnetic waves was launched from our lab. (Oct. 2006)
Electromagnetic waves typically in microwave frequency range are confined and guided in a thin sheet-like 2D medium. A coupler put near the surface can be coupled with the medium selectively and efficiently, which enables safe wireless power transmission in general environments and wide-band signal transmission free from interfering with the outside space. The medium can be produced from various low cost materials.
The following terms represent the identical technology
Two-dimensional communication (2DC)
Two-dimensional signal transmission (2DST) technology
Two-dimensional waveguide power transmission (2DWPT)
Two-dimensional waveguide transmission (2DWT)
The followings are also frequently used
Surface signal/power supply, Surface communication, Surface LAN, Surface network
Current commercial products using 2DT technology
LAN Sheet (Itoki Corp.), Cell Form (Teijin Ltd.), Touch LAN (Icom Inc.), Ultra-Thin RFID Antenna (Convergence Systems Limited), @Cell LAN, @Cell RFID (Cellcross Co., Ltd.), etc..

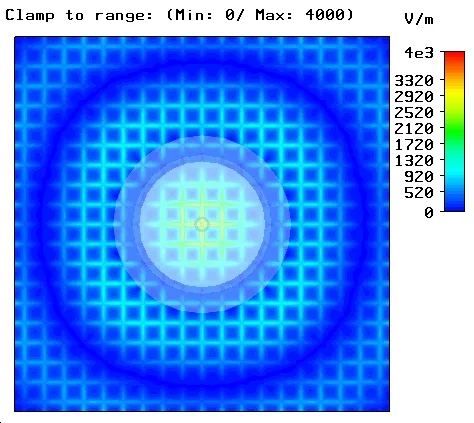

Top view of 2D microwave propagation
(inside the sheet)

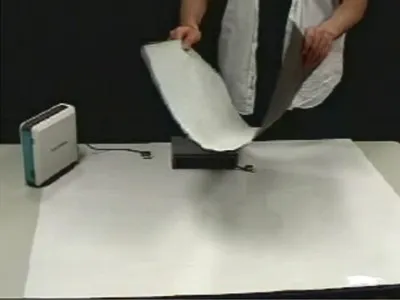

Video 1 (2005)
A low-cost sheet provides two-dimensional
signal transmission space

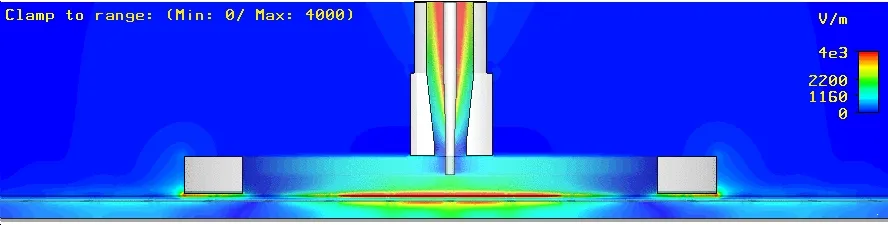

2D microwave radiation
through a proximity connector

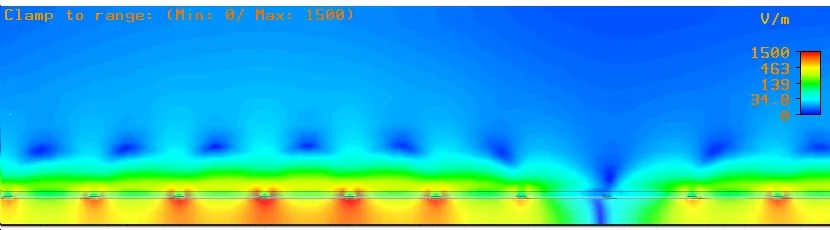

Cross-sectional view of 2D microwave
propagation

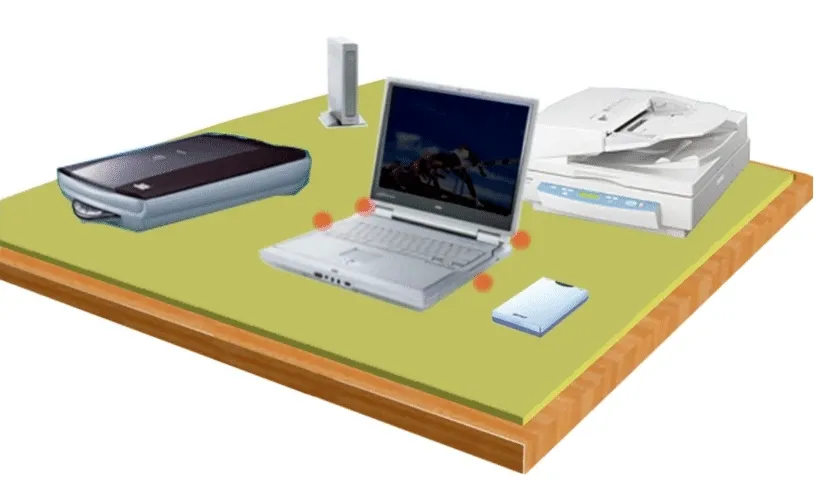

Desktop connection of peripheral devices

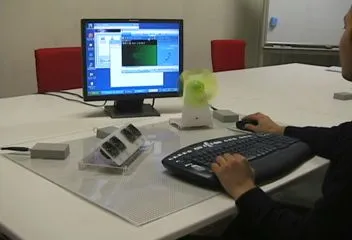

Video 2 (2007)
NICTユニバーサルメディアグループ共同研究
(株)セルクロスと共同で開発
A loudspeaker, mouse, keyboard, and fan without wires nor batteries
Contactless sensor embedding in stretchable fabrics

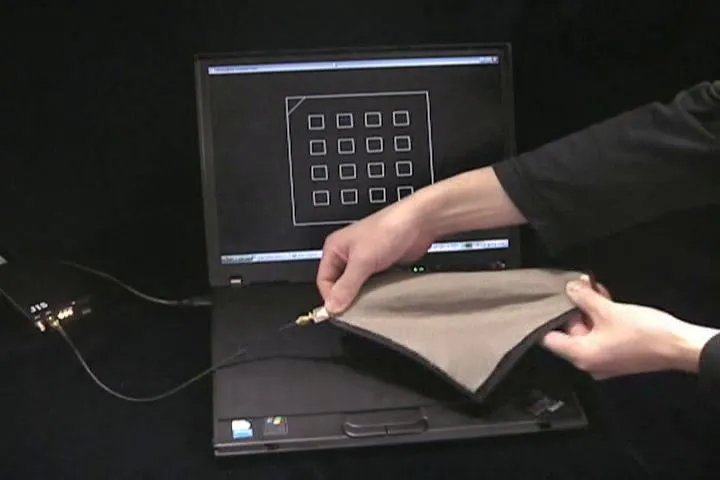

Video 3 (2006)
The right video demonstrates that sensor chips (tactile sensor chips) work in the 2DT sheet without electrical contact to the sheet. The proximity connection allows displacement of the sensor chip in 2DT sheet (fabrics), which endows the functional sheet with toughness keeping the elasticity.
